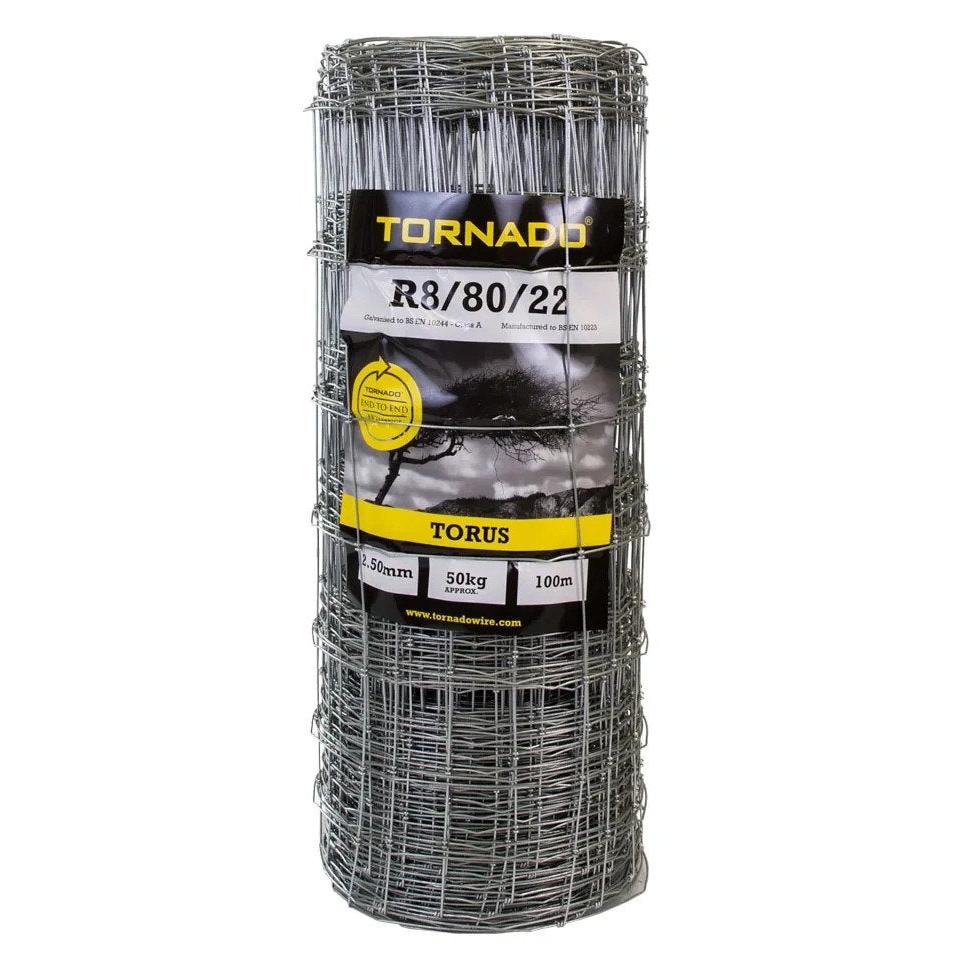

Tornado Torus Knot Galvanised Wire R8/80/22 - 100m

The R8/80/22 is the “Ultimate Livestock Fence” with 22cm spacing between the vertical stay wires, this increased spacing, over standard 15cm livestock net, helps prevent sheep getting their heads stuck in the fence. R8/80/22 stock fence features the unobtrusive high pressure bonded Torus knot which does not have any sharp edges. Tornado Torus netting features a solid vertical wire commonly referred to as “stiff-stay” and in accordance with the latest Countryside Stewardship Grant (FG2) £7.47 p/m can be claimed, it also enables posts to be spaced up to 6m. If using Hinge Joint whether it be mild steel or high tensile the maximum post spacing will be 3m. Tornado Torus Stock Fence is manufactured with high tensile wire which strains tighter than mild steel and so requires fewer intermediate posts, making it quicker to erect. The spring like properties of a high tensile wire help the netting stay tight, keeping maintenance to a minimum.



Specification




Number of line wires 8

Overall height 80cm

Distance between stay wires 22cm

Top & bottom line wire specification

2.5mm diameter - 1235 - 1390 N/mm2

Intermediate line wire specification

2.5mm diameter - 1235 - 1390 N/mm2

Vertical stay wire specification

2.5mm diameter - 695 - 850 N/mm2

Approx. weight per 100m roll 49kg

Material composition heavily galvanised steel wire



British & European Standards Compliant




BSEN 10218

BSEN 10223

BSEN 10244
